Industrial Dual-Port USB Charger (USB-A + USB-C PD)
Features
- Compact Industrial Design: Features a robust metal housing.
- Broad Application Range: Ideal for PC power adapters, portable chargers, car chargers, and power banks.
- Flexible Installation: Supports screw-fixed installation on walls, desktops, and other surfaces.
- Advanced Compliance: Equipped with a highly integrated USB-C port controller compliant with the latest USB-C and Power Delivery (PD) standards.
- Multiple Output Power Options: 1 × USB Type-A and 1 × USB Type-C PD charging port.
- Wide Input & Safety Protection: Accepts 9–24V DC input and includes over-current, over-voltage, and ESD protection.
- Fast Charging Protocols: Supports USB PD 3.0 and QC 4.0 for rapid charging compatibility.
- Secure Connection: Incorporates a USB-IF standard screw-lock mechanism to ensure a reliable and secure connection.
- Versatile Power Input:
- 2-pin terminal block for standard 12V automotive or 24V industrial power input
- Supports 12V–24V DC5525 input
Note: The rated power of the DC power source must be higher than the total output power of the charger. Do not use both power inputs at the same time.
Specifications
Ports
- Down-port: 1 × USB Type-C + 1 × USB Type-A
Power Output
- USB Type-A: QC 3.0, 18W Max
- USB Type-C: PD 3.0, 60W Max
- Maximum Output Power: 78W Max
Charging Protocol
USB-A (18W):
- QC2.0: 5V / 9V / 12V
- QC3.0
- Samsung AFC: 9V
- FCP: 5V / 9V / 12V
- Apple 2.4A
- BC1.2
USB-C (PD 3.0 – 60W):
- 5V / 3A
- 9V / 3A
- 12V / 3A
- 15V / 3A
- 20V / 3A
- PD 3.0 / PPS (3.3V – 21V), up to 63W
- Supports QC4+, SCP, AFC, FCP, Apple 2.4A, BC1.2
Power Input
- Suggested Input Voltage Range: DC 12–24V
- Minimum Input Voltage: DC 10.5V
- Maximum Input Voltage: DC 28V (Do Not Exceed)

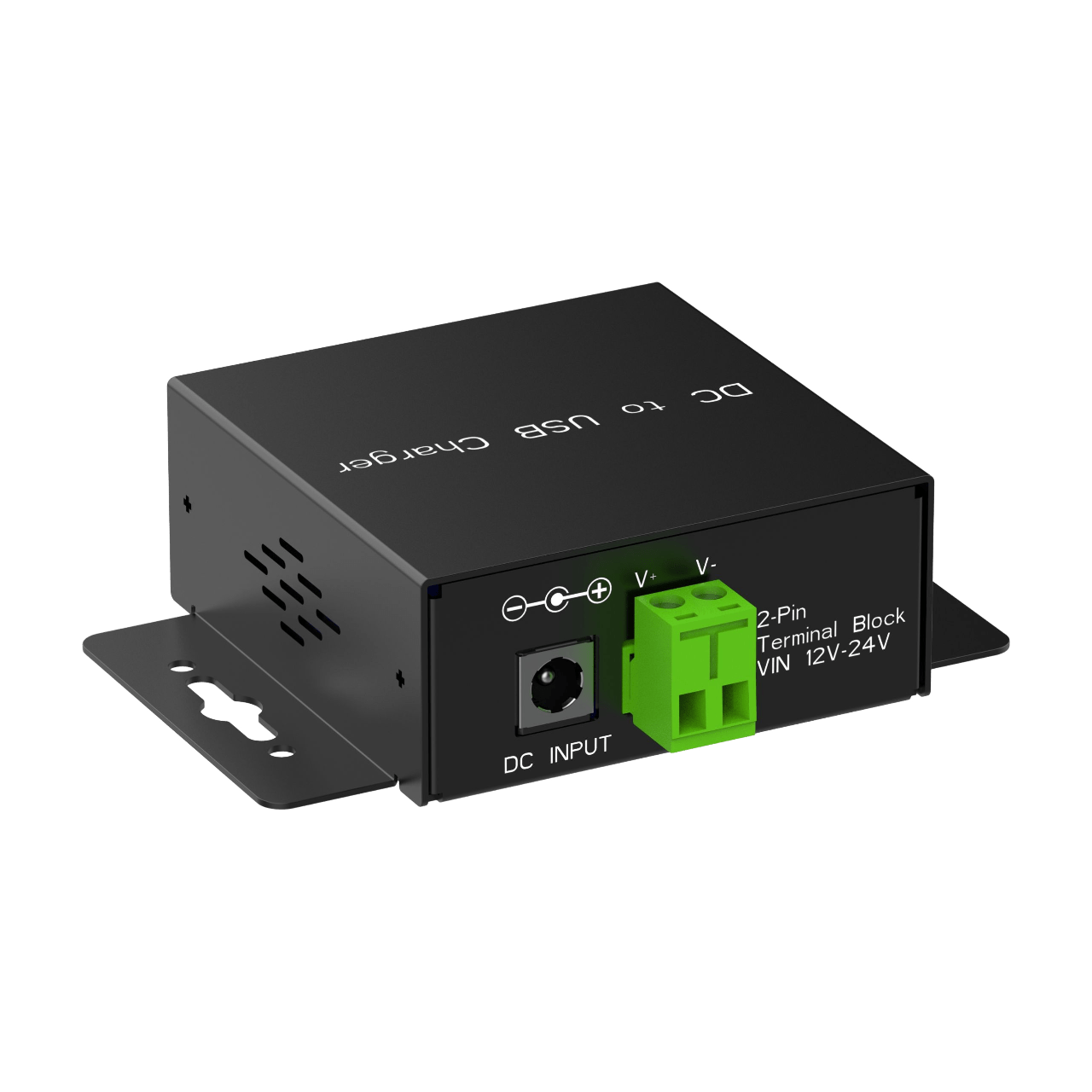

Input Options:
- DC 5.5 × 2.5 mm connector (12V DC)
- 2-pin terminal block (12V–24V DC)
External Power Requirement: 90W or higher recommended
Power Cable Requirement (2-Pin Terminal Block)
- 12V Input: AWG18 (0.825 mm²), approx. 10A
- 24V Input: AWG20 (0.52 mm²), approx. 7A
Protection & Compatibility
- Over-Current Protection: YES
- Over-Voltage Protection: YES
- ESD Protection:
- Contact Discharge: 2KV
- Air Discharge: 4KV
- Supported Operating Systems: OS independent (No driver required)
Mechanical
- Dimensions: W63 × H26.85 × L63 mm
- Dimensions (with mounting ears): W63 × H26.85 × L92.6 mm
- Weight: Approx. 110g
- Mounted accessories: Included
Environmental Requirements
- Operating Temperature: -20°C to +70°C
- Operating Humidity: 10% to 85% RH (non-condensing)
- Storage Temperature: -45°C to +125°C
- Storage Humidity: 5% to 90% RH (non-condensing)
